The Sound of Science

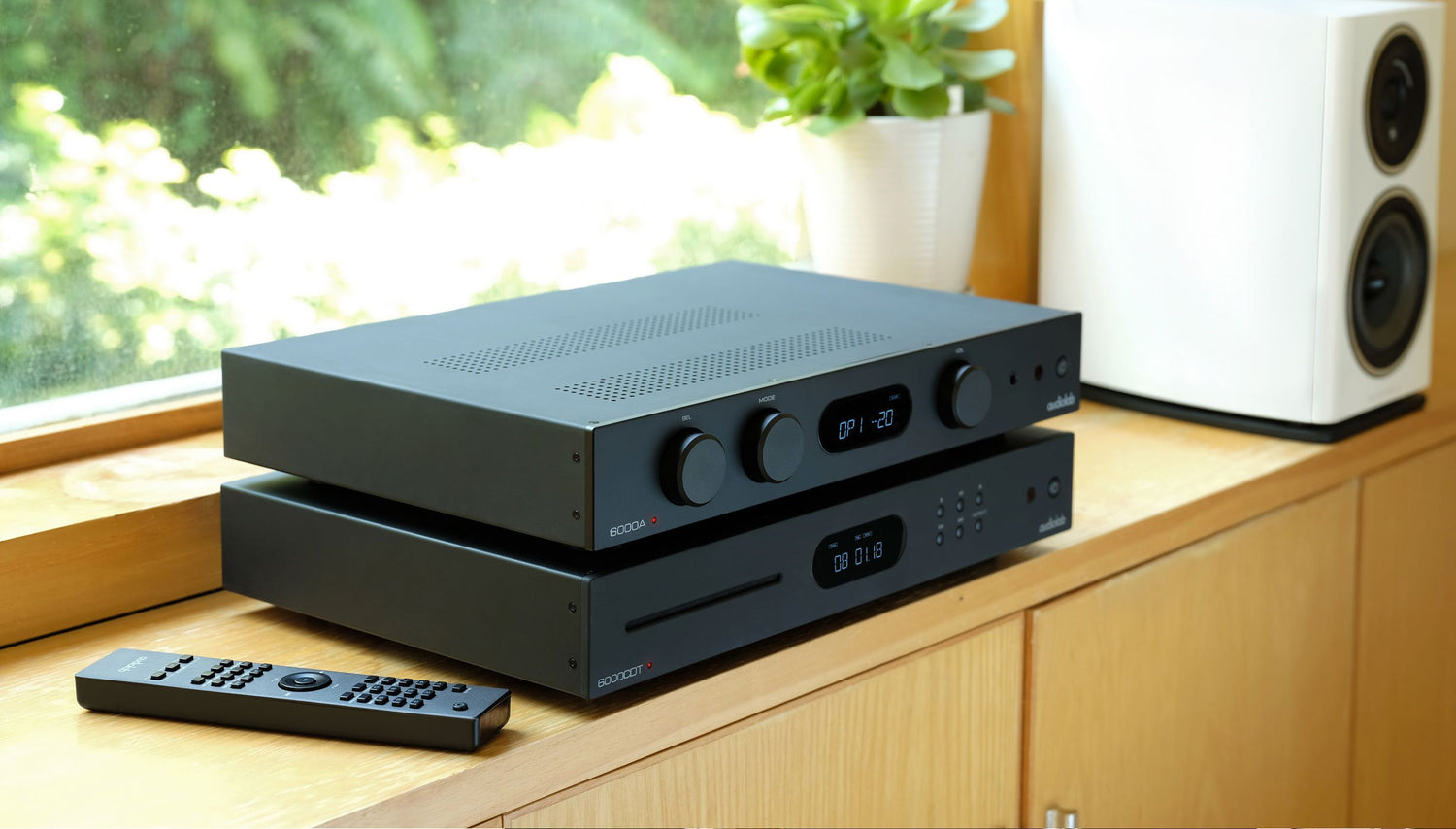

The 6000CDT is the latest CD transport from audiolab. Using audiolab’s slot loading mechanism, the transport uses read-ahead digital buﬀering to reduce disc reading failures and deliver the highest level of digital signal extraction from a wide range of CDs, even capable of reading scratched and damaged CDs that are unreadable by conventional mechanisms. The onboard digital decoder utilizes digital coax and optical outputs to deliver the maximum versatility.
The master clock is controlled by a temperature-compensated crystal oscillator, enabling the digital output from both coaxial and optical sockets to exhibit vanishingly low levels of jitter (digital distortion).
In addition, the coaxial output is fed from a differential line driver to ensure a flawless digital signal reaches the accompanying DAC – naturally, the 32-bit DAC section in the 6000A integrated amp is a superb sonic match.
By mounting the transport in its own, electromagnetically shielded enclosure, and including a dedicated power supply, the digital signal extraction from any CD is as accurate and precise as it is possible to achieve.
|Digital Output Voltage Level||600±50mVpp|
|Frequency response||<0.01dB @ 20-20kHz|
|Max Sampling Rate||44.1 kHz|
|Max. Power Consumption||15W|
|Standby Power Consumption||<0.5W|
|Power Requirements||240V ~ 50 – 60Hz|
|230V ~ 50 – 60Hz|
|115V ~ 50 – 60Hz|
|100V ~ 50 – 60Hz|
|Dimensions (mm )||(W x H x D) 445 x 80 x 307mm – including feet, terminals and controls|
|Carton Size (mm )||(W x H x D) 512 x 467x 146|
